En 13411-3 Steel Wire Rope Sling Aluminum Ferrules According To Din3093 |
ترصيص الحبال الصلب و السلك الواير المجدول |
توفر شركة عبد السلام ابراهيم الزكي الصبانى الواير المرصص بواسطة جلبة المونيوم مستوردة مطابقة للمواصفات العالمية حيث نقدم ترصيص الواير الصلب بواسطة مكبس مستورد يعد صبانى الواير المرصص احد اهم منتجات الصبانى الواير المجدول

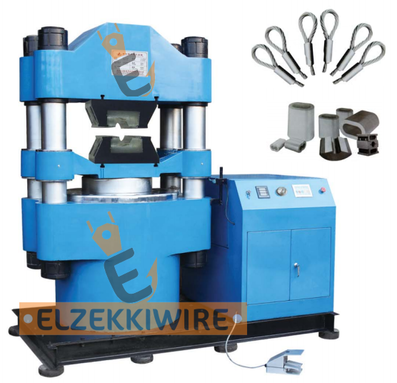

Steel Wire Rope Hydraulic Pressing Machine
Mechanically spliced ALUMINUM FERRULES DIN 3093 |
STEEL WIRE ROPE SLING As Per EN13411-3 (DIN 3093) |

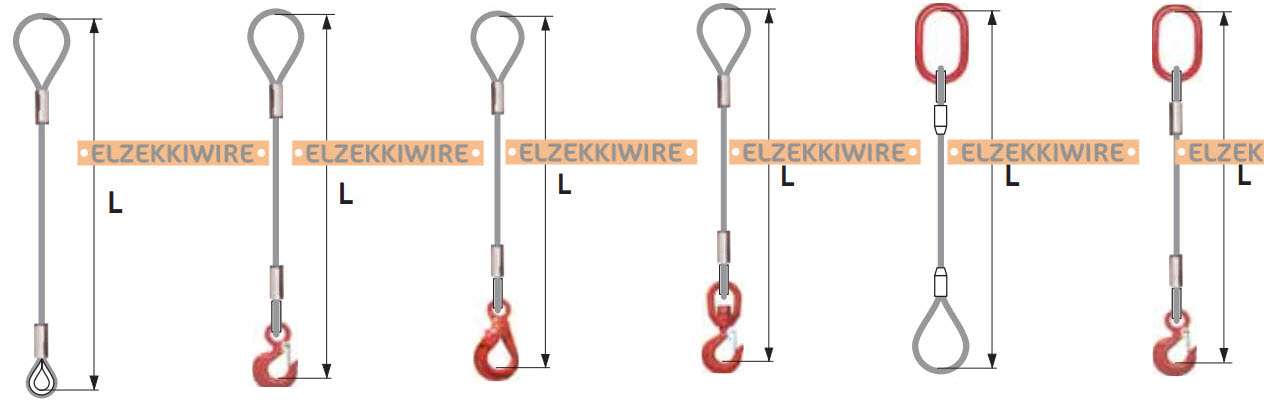

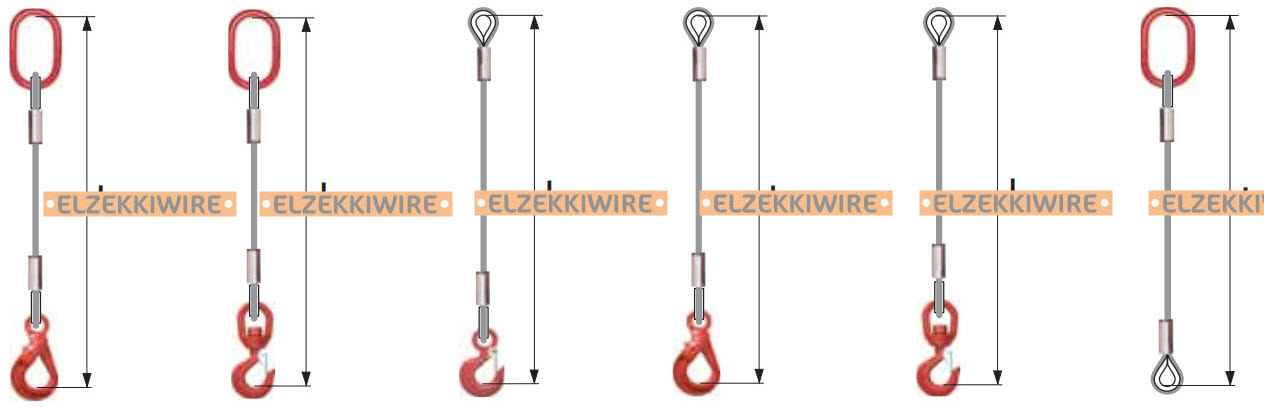

Single Leg Wire Rope Sling with Master link & Hook
Welcome to our product page for a single leg wire rope sling with master link & hook. Here at ELZEKKIWIRE we stock many different types of wire rope slings. This single leg wire rope sling with master link and hook is a complete lifting system.
single leg wire rope sling with master link & hook As its name may suggest, this product can come with more than one leg. A ‘leg’ is a length of wire rope, which has been spliced or pressed at the end to form an eye loop. You may find that this eye loop runs over a thimble for added robustness, but this isn’t always necessary.
We can supply this leg on its own, but more commonly you will find a leg, or several legs, attached to a master link. This particular product will come attached to the master link and will have a hook too. This means that it can be immediately used for the operation that you have purchased it for,The equipment itself is constructed from strong metal fibers and provides a great alternative to a chain sling.
Welcome to our product page for a single leg wire rope sling with master link & hook. Here at ELZEKKIWIRE we stock many different types of wire rope slings. This single leg wire rope sling with master link and hook is a complete lifting system.
single leg wire rope sling with master link & hook As its name may suggest, this product can come with more than one leg. A ‘leg’ is a length of wire rope, which has been spliced or pressed at the end to form an eye loop. You may find that this eye loop runs over a thimble for added robustness, but this isn’t always necessary.
We can supply this leg on its own, but more commonly you will find a leg, or several legs, attached to a master link. This particular product will come attached to the master link and will have a hook too. This means that it can be immediately used for the operation that you have purchased it for,The equipment itself is constructed from strong metal fibers and provides a great alternative to a chain sling.

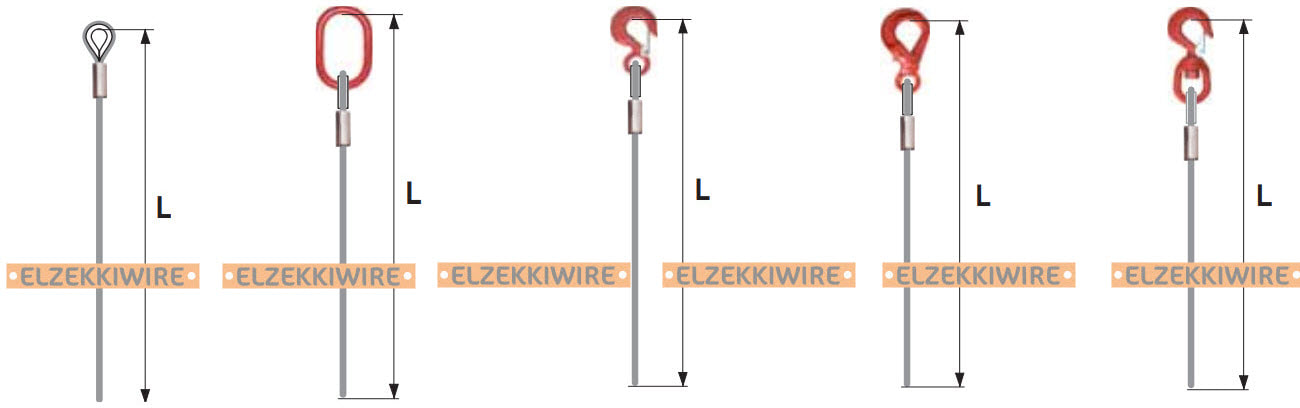

Thimble Eye Wire Rope Slings
We manufacture, stock and supply a great range of lengths and diameters of wire rope using our onsite and modern facilities. We can supply this equipment on its own, or we can complete it with various end terminations and assemblies. One such end terminations are thimble eye wire rope slings.
thimble eye wire rope slings You will often see equipment of this nature being hand spliced, which means that the end has been folded back on itself, and spliced into the rope. However a thimble eye can also be pressed with a ferrule, using many tonnes of force to provide a strong connection. This creates a strong eye-shaped loop, which can then be utilized with various other pieces of equipment.
While an eye on its own is strong, a thimble can help to further strengthen this setup. A thimble is a metallic strip, which has also been folded in order to create this eye loop. The wire rope will run around the thimble, and then spliced back into itself. This makes the end termination a lot stronger and a lot more permanent too. Having thimbles at each end means that this product can be used for a range of applications. For example, it could be used as a balustrade with each end looping over a hook.
We manufacture, stock and supply a great range of lengths and diameters of wire rope using our onsite and modern facilities. We can supply this equipment on its own, or we can complete it with various end terminations and assemblies. One such end terminations are thimble eye wire rope slings.
thimble eye wire rope slings You will often see equipment of this nature being hand spliced, which means that the end has been folded back on itself, and spliced into the rope. However a thimble eye can also be pressed with a ferrule, using many tonnes of force to provide a strong connection. This creates a strong eye-shaped loop, which can then be utilized with various other pieces of equipment.
While an eye on its own is strong, a thimble can help to further strengthen this setup. A thimble is a metallic strip, which has also been folded in order to create this eye loop. The wire rope will run around the thimble, and then spliced back into itself. This makes the end termination a lot stronger and a lot more permanent too. Having thimbles at each end means that this product can be used for a range of applications. For example, it could be used as a balustrade with each end looping over a hook.

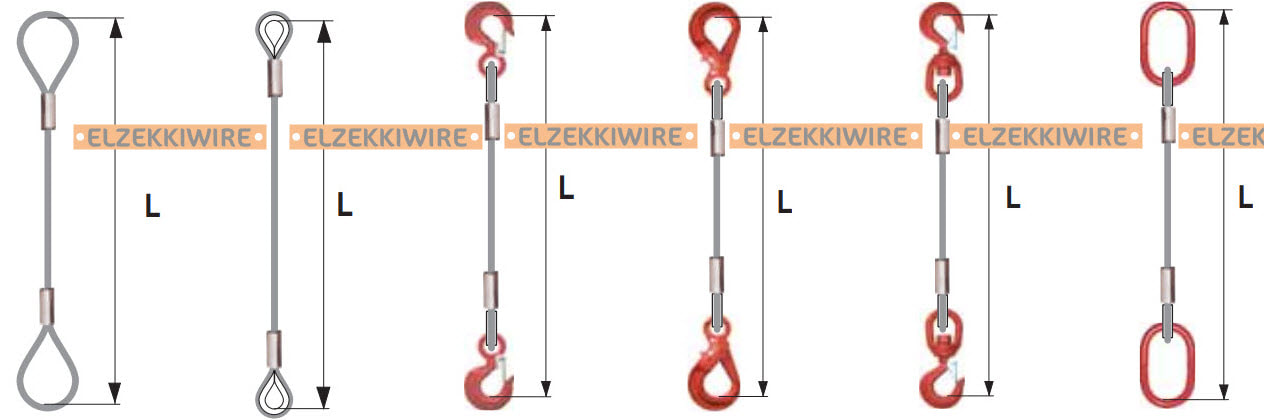

Soft Eye Wire Rope Slings
We manufacture and stock a range of products here at and can supply them with a range of end terminations. This will allow you to use the product immediately for your desired purpose. Here you will find out more about our soft eye wire rope slings which have soft loops at each end rather than a more solid thimble eye.
soft eye wire rope slings This particular product can be hand spliced at either end, or mechanically pressed and secured with a ferrule. Thus meaning that there is a natural loop in this slinging equipment which has been spliced or fixed back into itself. This creates an eye-shaped loop, which can be utilized for a range of applications.
The fact that this is a soft eye refers to the fact that this loop has been left natural. A ‘hard eye’ would be a loop that is supported along the inside of the loop using a metal thimble. A wire rope sling that has soft loops at each end will be less expensive than those with a hard eye and thimbles, given that less parts are needed to complete the piece.
We manufacture and stock a range of products here at and can supply them with a range of end terminations. This will allow you to use the product immediately for your desired purpose. Here you will find out more about our soft eye wire rope slings which have soft loops at each end rather than a more solid thimble eye.
soft eye wire rope slings This particular product can be hand spliced at either end, or mechanically pressed and secured with a ferrule. Thus meaning that there is a natural loop in this slinging equipment which has been spliced or fixed back into itself. This creates an eye-shaped loop, which can be utilized for a range of applications.
The fact that this is a soft eye refers to the fact that this loop has been left natural. A ‘hard eye’ would be a loop that is supported along the inside of the loop using a metal thimble. A wire rope sling that has soft loops at each end will be less expensive than those with a hard eye and thimbles, given that less parts are needed to complete the piece.
We Are manufacture wire rope slings to your requirements, whether for regular routine use, or for a one-off lift. Standard Fiber Core Or Steel Core wire rope slings can be manufactured with thimble or soft eyes in custom lengths across a range of wire rope diameters. See attached WLL table.

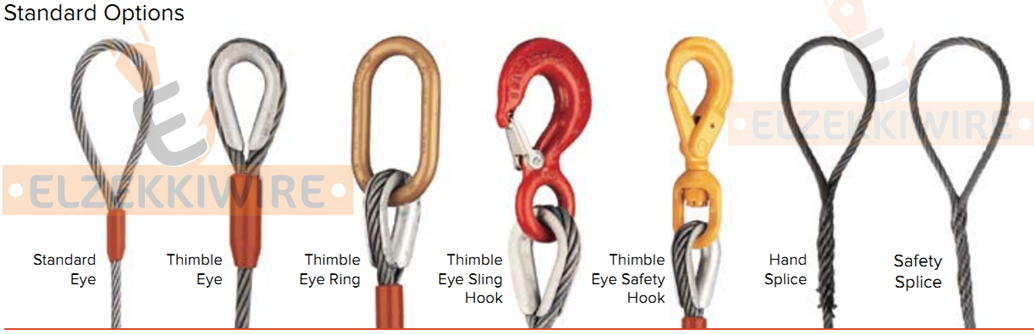

We also offer a full range of options for wire rope assemblies and slings including master links, various eye and end terminations with hooks or shackles etc at the bottom. also We manufacture 4 legged wire rope slings and hand spliced and Flemish eye slings as required.
We also offer a full range of options for wire rope assemblies and slings including master links, various eye and end terminations with hooks or shackles etc at the bottom. also We manufacture 4 legged wire rope slings and hand spliced and Flemish eye slings as required.

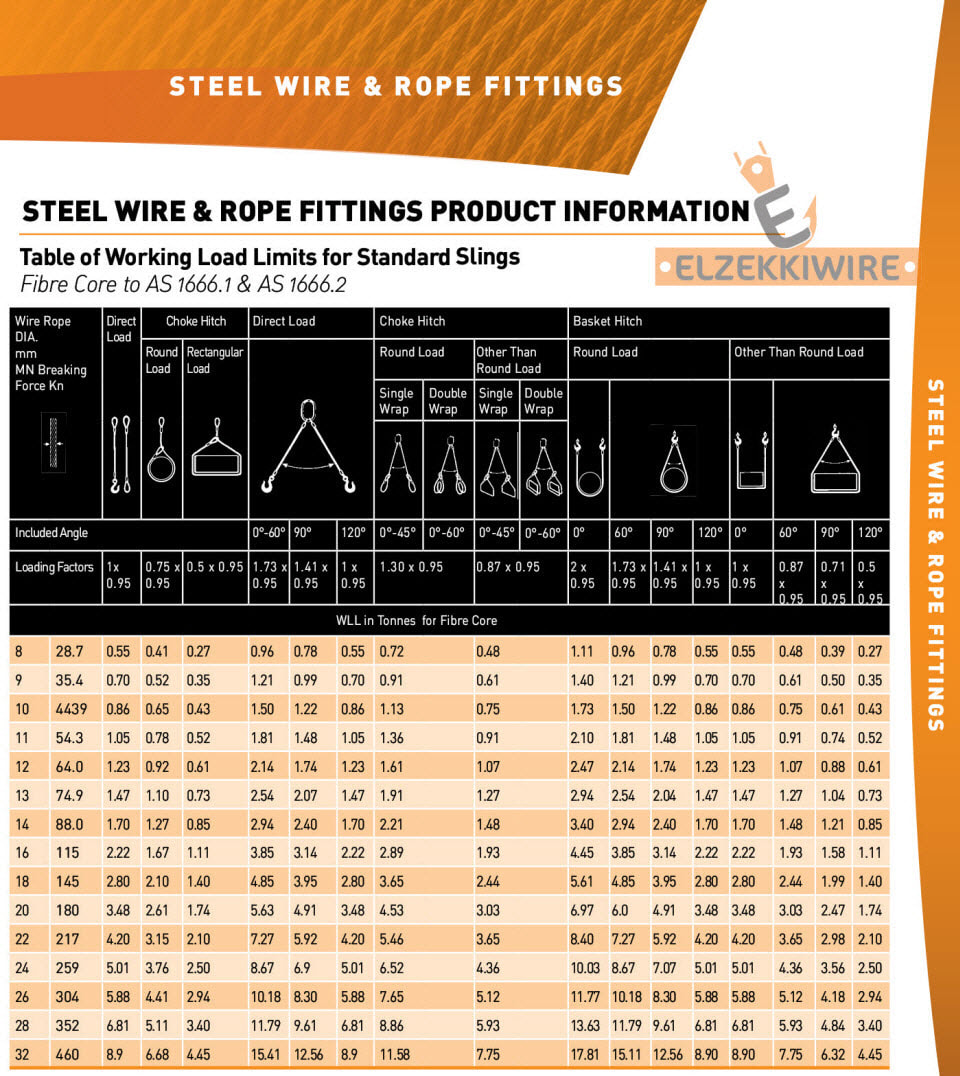

Table of Working Load Limits for Standard Steel Wire Rope Slings
Fibre Core to AS 1666.1 & AS 1666.2

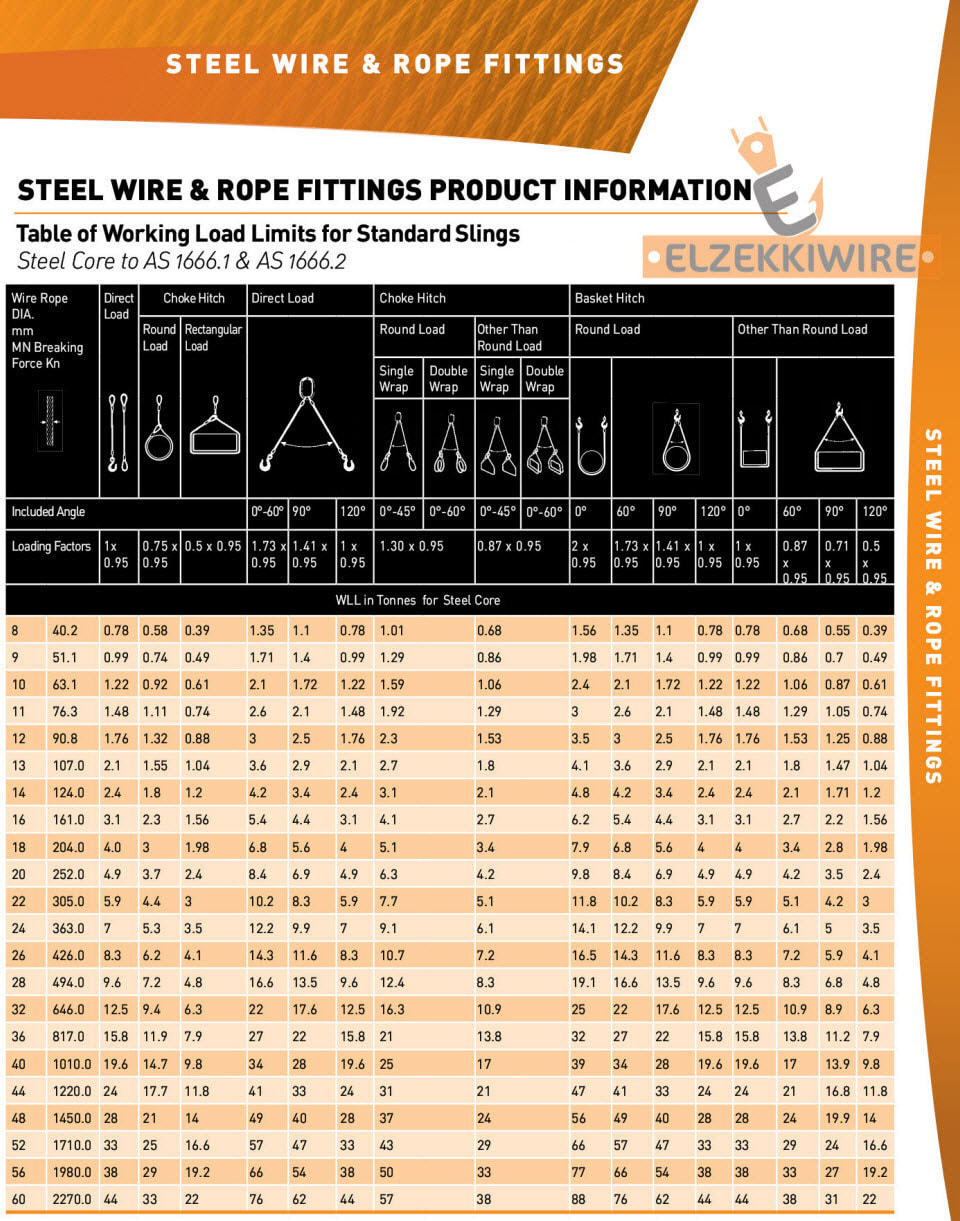

Table of Working Load Limits for Standard Steel Wire Rope Slings
Steel Core to AS 1666.1 & AS 1666.2
Steel Wire Rope Slings Manufactured As Per EN13411-3 (DIN 3093) Standard
Steel Wire Rope Slings Ended / Closed By Aluminum Ferrules Manufactured As Per EN13411-3 (DIN 3093) Standard
Flemish Eye Steel Wire Rope Slings With Ferrule
Hand- Spliced Steel Wire Rope Slings
Multi Legs Steel Wire Rope Slings
Steel Wire Rope Slings Ended / Closed By Aluminum Ferrules Manufactured As Per EN13411-3 (DIN 3093) Standard
Flemish Eye Steel Wire Rope Slings With Ferrule
Hand- Spliced Steel Wire Rope Slings
Multi Legs Steel Wire Rope Slings
