Yoke Lifting Rigging Products

منتجات صلب ماركة يوك عالية الصلابة معتمدة

---

.تم إنشاء YOKE ، الشركة المصنعة المهنية لخطافات أمان الرفع الصناعي ماركة يوك ، في عام 1985 ركزت بشكل أساسي على التجارة والتصنيع الافتراضي في البداية. الشركات التابعة متاحة في البر الرئيسي للصين في الوقت الحالي ، وهناك حوالي 100 موقع توزيع حول العالم. تتمتع كل من الجودة والتكنولوجيا بسمعة طيبة في المجتمع الدولي.
ابتداء من عام 2009 ، تم تكريس الشركة للتحول الاستراتيجي والابتكار. تركز استراتيجية التطوير الشاملة على "المنتجات الجميلة ، والأسعار العادلة ، والخروج السريع ، والدخول السريع" ، وقد أعطت ثمارًا تشغيلية ساحقة حتى الآن ، مما يضمن مكانة الشركة الرائدة في عالم رفع السلاسل والخطافات

YOKE, the professional industrial lifting safety hooks manufacturer, was created in 1985 and focused primarily on trading and virtual manufacturing at the very beginning. Subsidiaries are available in Mainland China at the moment, and there are about 100 distribution sites around the world. Both quality and technology are well reputed in international society.

Starting in 2009, the company has been devoted to strategic transformation and innovation. The overall development strategy emphasizes “beautiful products, fair prices, fast out, and fast in” and has rendered overwhelming operational fruit to date, securing the company’s leading position in the world of lifting chains and hooks.

In the industry for safety hooks, all products are distributed on the basis of the safety and protection they provide. And as such, YOKE has defined itself as a company that deals and sells safety. “Pursue quality perfection, Constant innovation and development, Sustain management improvement and Create customer satisfaction” has always been the Company’s management philosophy, and we have always insisted on “quality and safety” over the years. All hooks used in lifting projects go through necessary tests as required by applicable regulations. In addition to API TS 29001, API QMS ISO 9001, and DNV ISO 9001, type approvals have been obtained for products in multiple countries at the same time, including the related product safety certifications granted by the German Social Accident Insurance Association (DGUV), the American Bureau of Shipping (ABS), the Det Norske Veritas (DNV), and the Canadian Standards Association (CSA).

---

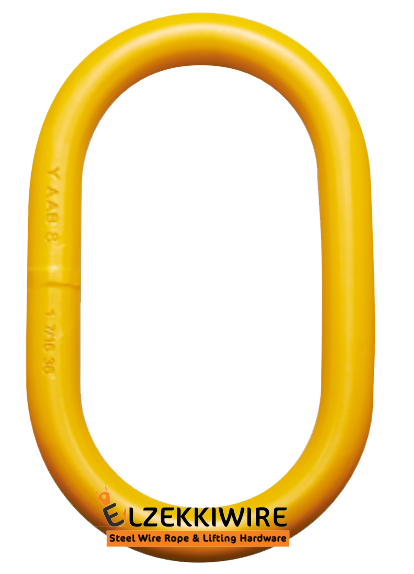

YOKE Master Link
● Meets the following performance requirements:
- DNV 2.7-1
- EN 1677-4
- ASME B30.26
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section.
● Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welding section.
● Engineered flat makes it simple to insert wire rope thimbles on our links,-40°C.
* Welded Master Link
* Design Factor 5:1
* Proof tested at 2.5 times the WLL

---

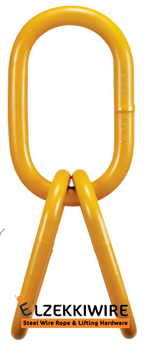

YOKE Master Link Assembly
● Meets the following performance requirements:
- DNV 2.7-1
- EN 1677-4
- ASME B30.26
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit(WLL).
● Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section.
● Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welding section.
● Engineered flat makes it simple to insert wire rope thimbles on our links,-40°C.
* Welded Master Link
* Design Factor 5:1
* Proof tested at 2.5 times the WLL

---

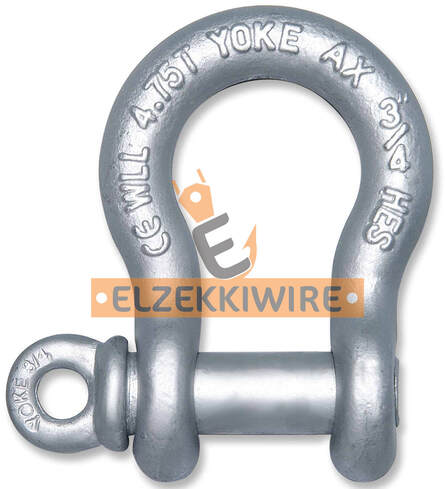

YOKE Forged Alloy Shackle Screw Pin  8-837
​● Shackles are Type Approved by DNV & ABS.
● Shackles are forged carbon steel with alloy pin.
● Size and Working Load Limit permanently shown on each shackle.
● All shackles with Batch Code which links to Test Certificate and quality traceability.
● 100% magnaflux crack detection during manufacturing.
● 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
● Minimum Ultimate Load is 6 times the Working Load Limit. Maximun Proof Load is 2 times the W orking Load Limit.
** YOKE 8-837 Carbon Bolt Type Anchor Shackles meet the performance requirements of Federal Specification RR-C-271D, Type A, Grade A, Class 2.

---

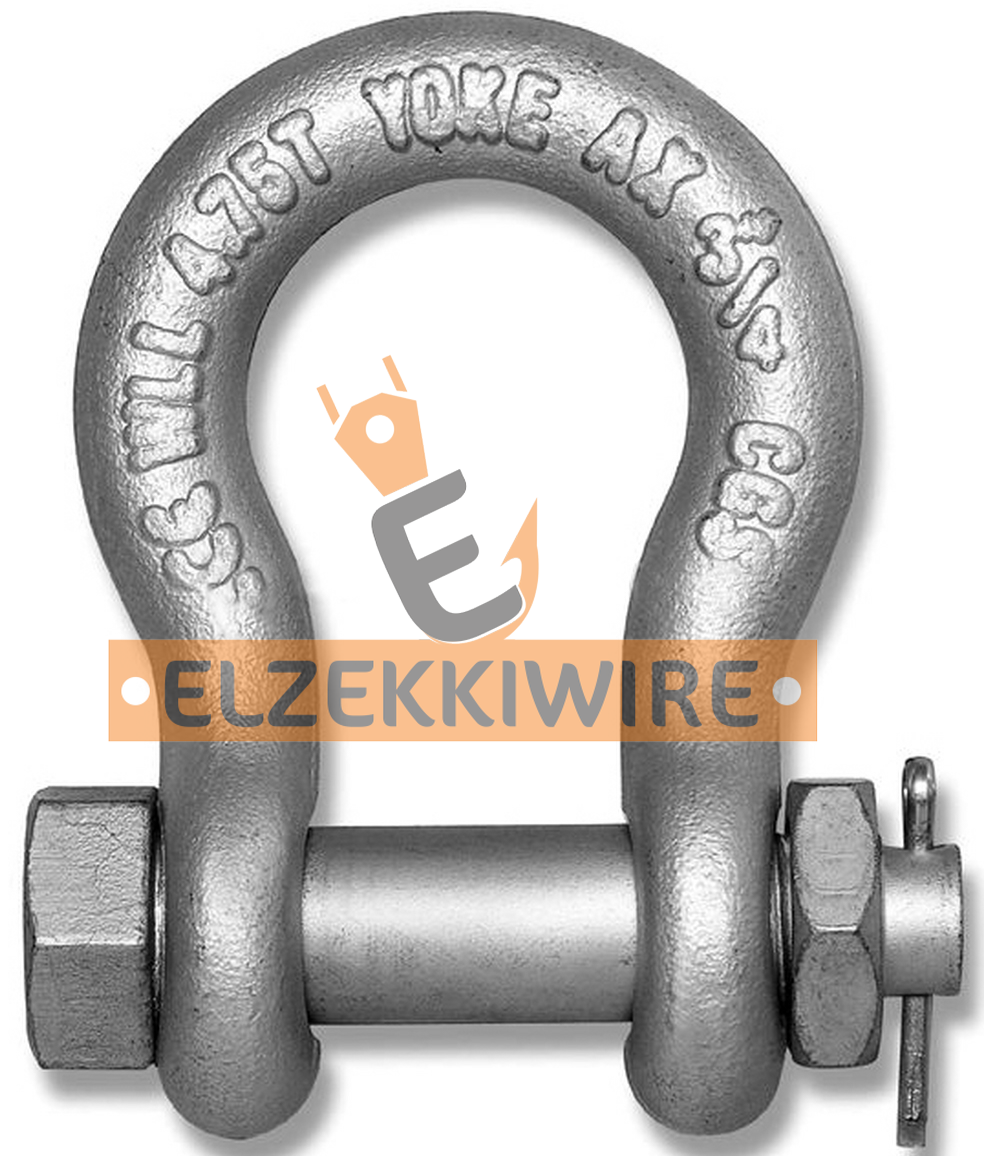

YOKE Forged Alloy Shackle With Safety Bolt 8-838
● Shackles are Type Approved by DNV & ABS.
● Shackles are forged carbon steel with alloy pin.
● Size and Working Load Limit permanently shown on each shackle.
● All shackles with Batch Code which links to Test Certificate and quality traceability.
● 100% magnaflux crack detection during manufacturing. ●20,000 cycle fatigue rated to 1.5 times Working Load Limit.
* Minimum Ultimate Load is 6 times the Working Load Limit.
* Maximun Proof Load is 2 times the Working Load Limit.
​YOKE 8-838 Carbon Bolt Type Anchor Shackles meet the performance requirements of Federal Specification RR-C-271D, Type 4A, Grade A, Class 3.

---
